Line Configuration
Match junction box type, cable length, diode process, inspection requirements, output target, and available floor space.
Turnkey PV junction box automation
Operator-friendly production lines for solar junction box manufacturers.
SOLARGY CO., LIMITED helps overseas factories build automated capacity with proven assembly lines, wire processing machines, inspection modules, commissioning support, and export-ready documentation.
solargyautomation.com | WhatsApp:+86 1351 100 8242 | Email: Solargycn@gmail.com
U.S. export experience
1200-2000 sets/hour modules
Turnkey commissioning
One-stop line planning
From equipment selection to stable production ramp-up.
Automation Integration
Combine cutting, stripping, crimping, riveting, welding, testing, laser marking, sorting, clipping, knotting, and coiling modules.
Export Delivery
Coordinate packing, documentation, installation guidance, English materials, spare parts, training, and after-sales communication.
Line running evidence
Ask for the PV junction box automation line running video.
For serious projects, SOLARGY CO., LIMITED can share line-running videos, machine photos, process flow notes, and configuration references according to your junction box design and target capacity.
Video available on request
What buyers should check in a real production video
- Stable feeding, wire processing, assembly, inspection, and finished output.
- Actual output rhythm compared with the requested 1200-2000 sets/hour target.
- HMI operation, fixture changeover, safety guarding, and rejected-part handling.
- Whether the shown configuration matches your diode type and junction box drawing.
Equipment portfolio
Production modules for complete PV junction box assembly.
Specifications are kept from the sample brochure. Final line layout and options should be confirmed against your junction box drawing and target output.

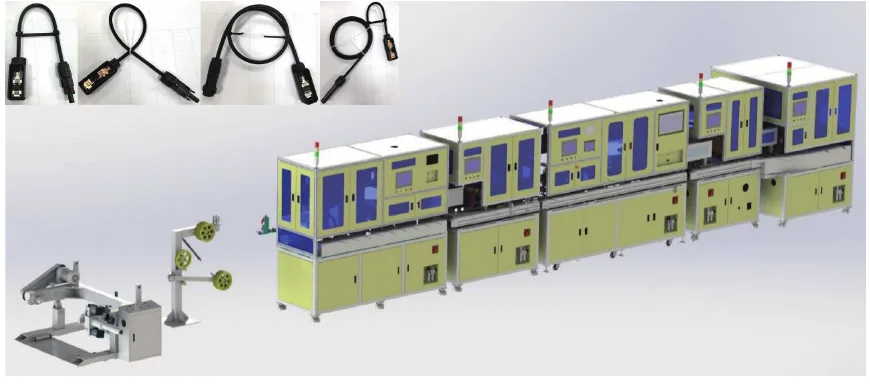

Model MoB-500
Fully Automatic Three-Piece PV Junction Box Assembly Line
Integrates wire preprocessing, assembly, transfer, monitoring, and finished product output into a closed-loop production system.
- Dimensions
- L14m x W2.8m x H2.2m x 2
- Power
- 8KW x 2
- Capacity
- 1200 sets/hour

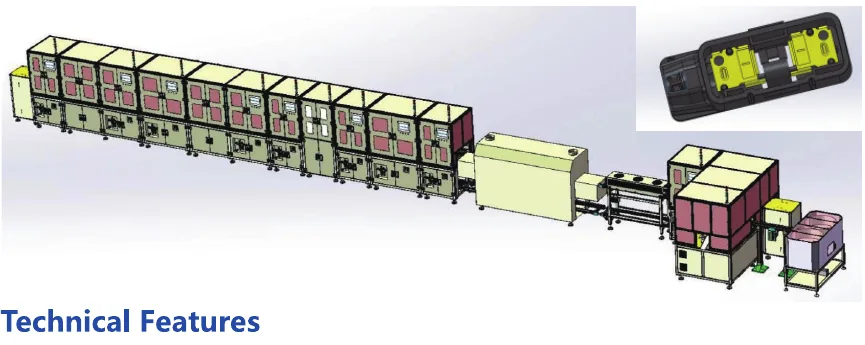

Model MoB-5012
Cylindrical Diode JB Assembly Machine
Dual-track feeding, diode lead cutting, resistance welding, solder paste mounting, and reflow soldering.
- Dimensions
- L16m x W1.8m x H2.2m
- Power
- 25KW x 2
- Capacity
- 2000 sets/hour

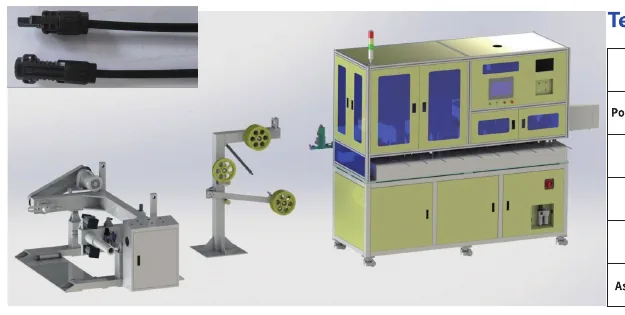

Model MoB-503
Wire Cutting, Stripping, Crimping and Screwing Machine
Servo wire feeding, cutting and stripping, terminal crimping, CCD inspection, and connector feeding.
- Dimensions
- L5.8m x W1.6m x H2.2m x 2
- Power
- 2.5KW x 2
- Capacity
- 1200 sets/hour

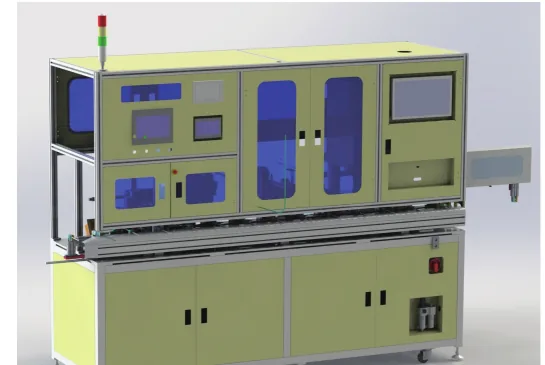

Model MoB-502
Riveted Finished Product Assembly Line
Automatic casing feeding, pressure block feeding, wire stripping, riveting, diode testing, laser marking, and sorting.
- Dimensions
- L3.15m x W1.5m x H2.2m x 2
- Power
- 2.5KW x 2
- Capacity
- 1200 pcs/hour

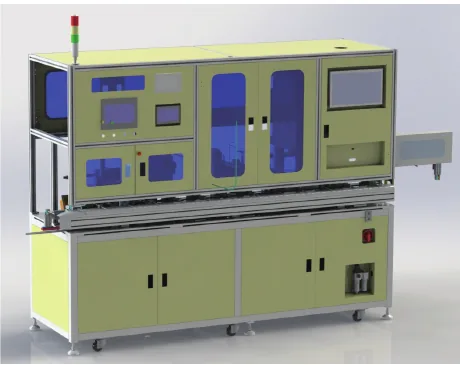

Model MoB-5022
Resistance Welding Finished Product Assembly Line
Designed for casing-wire resistance welding with ultrasonic pressure block welding and automatic test reporting.
- Power
- 2.5KW x 2
- Air Supply
- 0.6-0.8Mpa
- Capacity
- 1200 pcs/hour

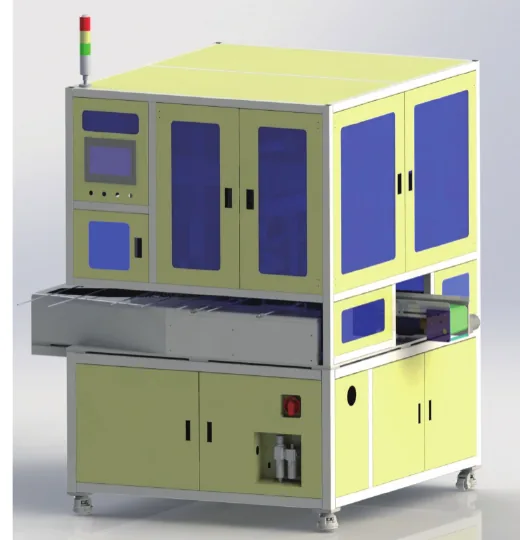

Models MoB-506 / 507 / 508
Cable Clipping, Knotting and Coiling Modules
Servo-controlled cable handling modules for clip sizes 55-105 mm, fast changeover, and stable finished cable presentation.
- Power
- 1.5-3.5KW
- Air Supply
- 0.6-0.8Mpa
- Capacity
- 950-1300 pcs/hour
Target markets
Built for overseas PV manufacturing projects.
PV Junction Box Automation Lines for U.S. Manufacturing Projects
Position SOLARGY CO., LIMITED around proven export experience, compliance documentation, process stability, traceable inspection, and English commissioning support for U.S.-oriented production teams.
- Export-ready documentation and technical file coordination
- Quality inspection, laser marking, and test data output
- Remote guidance and onsite commissioning options
Compliance and trust
Export-ready documentation for serious factory projects.
SOLARGY CO., LIMITED can provide compliance and technical files according to the final equipment configuration and destination market. Available documents may include CE conformity documents, UL-listed component documentation where applicable, electrical schematics, pneumatic diagrams, manuals, packing details, commissioning plans, and spare parts lists.
CE documents on request
UL component records where applicable
Electrical and pneumatic drawings
Manuals and commissioning files
Final certification scope should be confirmed against the ordered machine configuration, electrical standard, and buyer documentation requirements.
Project delivery support
A clearer path from technical discussion to accepted production line.
Technical Matching
Review junction box drawing, cable length, diode process, connector type, production target, factory voltage, and available space before quotation.
Factory Acceptance
Confirm machine configuration, process route, packing plan, spare parts, manuals, and available line-running evidence before delivery.
Commissioning Guidance
Provide remote communication, English materials, operator training guidance, spare parts coordination, and optional onsite commissioning discussion.
Buyer questions
FAQ for PV junction box automation projects.
These answers target the questions buyers often search before requesting a quotation or booking a technical call.
What equipment is included in a turnkey PV junction box automation line?
A complete configuration can include wire cutting, stripping, crimping, screwing, diode assembly, riveting, resistance welding, testing, laser marking, sorting, cable clipping, knotting, and coiling modules.
What information is needed for a quotation?
Send the junction box drawing, cable length, connector type, diode process, target capacity, preferred automation level, factory voltage, and destination market.
Can SOLARGY CO., LIMITED support U.S. market documentation?
Yes. SOLARGY CO., LIMITED can coordinate certification files, manuals, electrical documents, packing details, and commissioning plans based on the final equipment configuration.
Is the line suitable for India and Turkey?
Yes. The line can be configured for high-output production in India and flexible regional supply projects in Turkey, with modular expansion options.
Technical proposal package
Get a practical line recommendation before you compare prices.
Send your junction box drawing and project target. SOLARGY CO., LIMITED can prepare a proposal package covering recommended modules, process route, rough footprint, capacity planning, utility requirements, delivery scope, and commercial terms.
Best information to send
- Junction box drawing or sample photos.
- Cable length, connector type, diode type, and welding/riveting process.
- Target capacity, destination country, factory voltage, and available floor space.
- Any required CE, UL component documentation, manuals, or buyer audit files.
Request a proposal
Tell us your junction box type and target output.
SOLARGY CO., LIMITED will prepare a recommended line configuration, footprint, process route, delivery scope, and commercial quotation.
